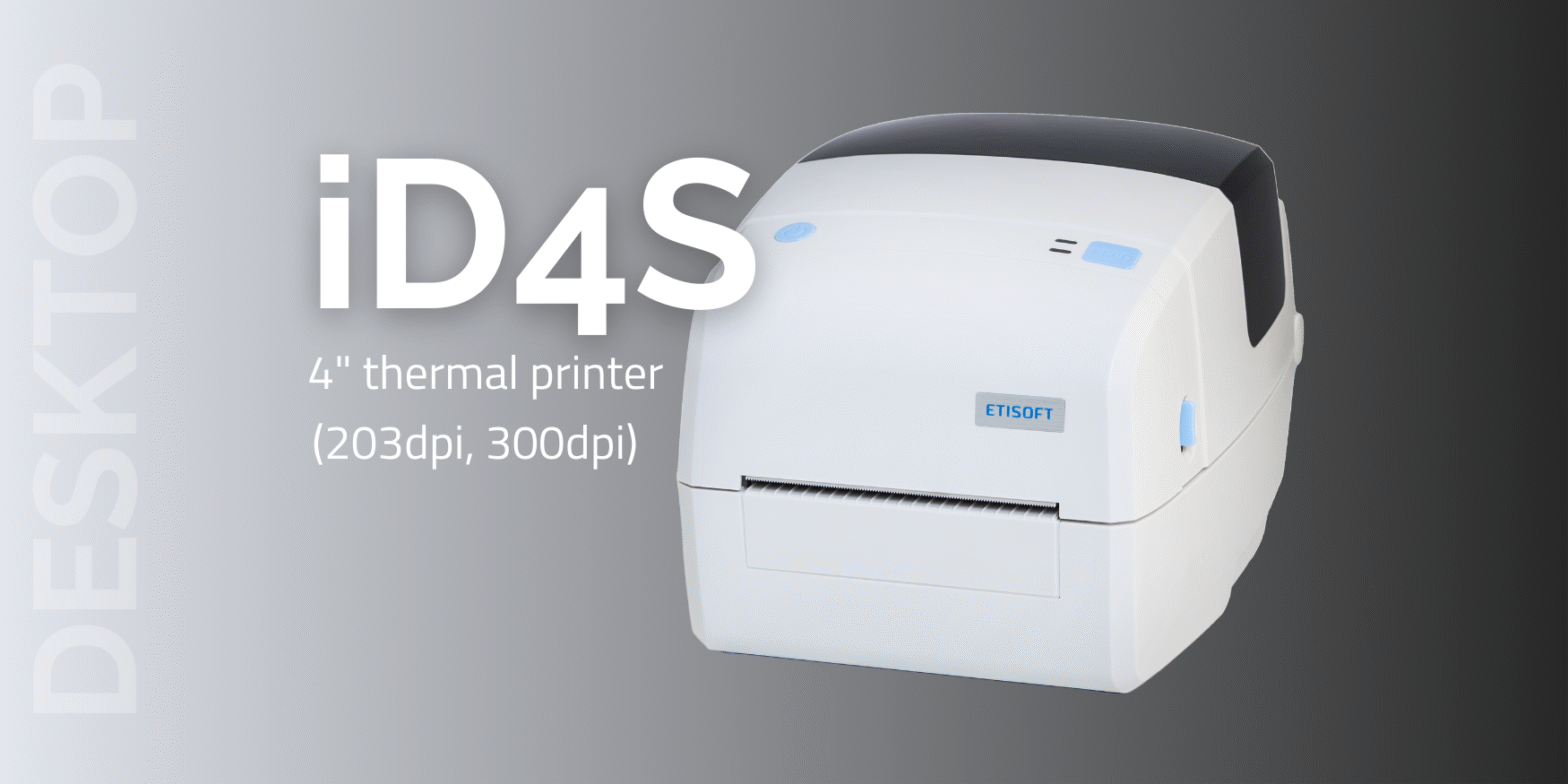

Etisoft iD4S thermal label printer – a reliable desktop option
The Etisoft iD4S thermal label printer is a versatile device designed for companies that need a fast and reliable tool for marking products, packages, or documents on a daily basis. Thanks to the use of Direct Thermal printing technology, the device does not require thermal transfer ribbon, which reduces operating costs and makes it an ideal solution for printing short-term labels.
Its compact design, easy integration with IT systems, and intuitive operation make the iD4S ideal for small offices and shops as well as more demanding environments such as production lines and logistics centers.
Key advantages of the Etisoft iD4S thermal label printer
- Thermal printing technology – no need for additional consumables (e.g., color ribbons), which translates into lower costs and simpler operation.
- Flexibility – supports labels from 25.4 mm to 118 mm wide, with automatic media detection.
- 203 dpi or 300 dpi resolution – print quality can be adjusted to suit your needs: from simple logistics labels to more detailed product labels.
- Print speed up to 5 ips (127 mm/s) – efficient creation of large label series.
- Wide compatibility – full support for popular control languages (EPL, ZPL, TSPL, DPL), ensuring compatibility with systems used in logistics, retail, and manufacturing.
- Connectivity – standard USB and Ethernet ports, optional Wi-Fi and Bluetooth modules for easy integration with the customer’s IT infrastructure.
- Modern electronics – powerful 32-bit processor, 128 MB RAM, and 256 MB Flash memory guarantee fast processing of printing tasks.
- Ease of use – quick roll loading, automatic label type recognition, and intuitive control panel.
Typical applications of Etisoft iD4S
The iD4S thermal label printer is ideal for applications where efficiency, speed, and legibility are important. The most common areas of use are:
- Logistics and warehousing – printing courier, logistics, pallet, and collective labels that facilitate the identification of goods in the supply chain.
- E-commerce and online commerce – fast printing of address labels, shipment labels, and return labels.
- Manufacturing – identification labels, control labels, labels for semi-finished products or finished products. Short-term thermal labels are most commonly used, e.g., for production batch labels.
- Retail – price labels, product labels, promotional labels, and shelf and rack markings.
- Administration and offices – archiving labels, document markings, folders, and envelopes.
In practice, iD4S is a device that can be used in any company where there is a need for ongoing label printing – both on a small and medium scale.
Technical data
| Section | Parameter | Specification |
|---|---|---|
| Model | Model | ETISOFT iD4S |
| Printing | Print type | Direct thermal |
| Resolution | 203 dpi / 300 dpi | |
| Max. print speed | 5 ips (203 dpi) / 4 ips (300 dpi) | |
| Max. print width | 108 mm (203 dpi) / 106 mm (300 dpi) | |
| Max. print length | 2,286 mm (203 dpi) / 1,524 mm (300 dpi) | |
| Programming languages | ZPL-II, EPL-II, TSPL, DPL | |
| Media | Media types | Continuous paper, Gap, Black Mark, Punched Hole Label |
| Width | 1″ (25.4 mm) – 4.65″ (118 mm), including liner | |
| Thickness | 60 µm ~ 250 µm | |
| Outer roll diameter | 127 mm | |
| Core diameter | 0.5″ (12.7 mm), 1″ (25.4 mm), 1.5″ (38 mm) | |
| Barcodes | 1D codes | Code 39, Code 93, EAN 8/13 (+2 & +5), UPC A/E (+2 & +5), Code 128 (A/B/C), etc. |
| 2D codes | PDF417, Data Matrix, MaxiCode, QR Code, Micro PDF417, Micro QR Code, Aztec Code | |
| Sensors | Label sensor | Gap detection (transmissive) |
| Black mark sensor | Reflective detection (adjustable) | |
| Additional functions | Paper out, cover open, thermal head overheating detection | |
| Connectivity | Standard interfaces | USB Type-B, Ethernet |
| Optional interfaces | Wi-Fi, Bluetooth | |
| Memory | RAM | 128 MB |
| Flash | 256 MB | |
| Control panel | Interface | Power button, FEED button, 2 LED indicators |
| Power supply | Input | AC 100~240V, 50/60Hz |
| Output | DC 24V, 2.5A | |
| Environment | Operation | 5–50°C, 25–85% RH (non-condensing) |
| Storage | -40–60°C, 10–90% RH (non-condensing) | |
| Dimensions | Size (D × H × W) | 203 × 252 × 181 mm |
| Weight | 1.8 kg | |
| Software | Compatible software | ETILABEL |
| Warranty | Printer | 12 months |
| Print head | 6 months |
ETILABEL design and printing software – complete control over printing
A huge advantage of the Etisoft iD4S label printer is its full compatibility with Etilabel software. This program has been designed for flexible and intuitive label design and printing, and in combination with iD4S, it creates a complete and easy-to-use labeling system.
With ETILABEL, users gain, among other things:
- the ability to design their own label templates (logos, barcodes, QR codes, serial numbers, expiration dates, etc.),
- easy connection to databases for automatic retrieval and placement of information on labels,
- support for industry standards, including GS1,
- support for various types of barcodes and 2D codes,
- an intuitive interface that allows even less experienced users to quickly prepare print-ready designs.
Importantly, ETILABEL updates in the subscription model provide access to the latest features and technical support, ensuring that the labeling system will always comply with the requirements of customers and business partners.
Download the free version of ETILABEL here!
Etisoft professional maintenance services for label printers
Etisoft provides comprehensive maintenance services for label printers. Our goal is to ensure uninterrupted printer operation and labeling process security, regardless of the equipment manufacturer.
We offer warranty and post-warranty service as well as flexible service agreements that allow you to tailor the scope of support to the needs of your company.
- By signing a service agreement with Etisoft, you receive, among other things:
- Help Desk technical support by phone,
- Free training for your employees,
- Free labor and attractive discounts on spare parts,
- Inspections and repairs of equipment directly at your facility.
Contact us to prepare a service package tailored to your equipment and needs.
Summary
The Etisoft iD4S thermal label printer is a reliable, compact solution that is perfect for everyday labeling. It combines low operating costs, ease of use, and flexibility of application. When combined with the optional ETILABEL software, it creates a complete system for marking products, packages, and documents – ideal for companies operating in logistics, e-commerce, manufacturing, and retail.
